The Solite Barn, June 1998
Part One

The following are edited and expanded reports from the HVVA Newsletter, Volume 3, Number 6.

(Click on all graphics for a larger view.)

Saturday, August 18, 2001 nine people attended a short tour of two barns in the Town of Saugerties, Ulster County. They were Jean Goldberg, Alvin Sheffer, John and Marian Stevens, Hank Zigler, Jennie Marshall, Alec Wade, Barry Benepe and myself. It was organized by the Saugerties Historical Society and HVVA.

The first barn visited was the 3-bay Dutch barn on the Northeast Solite property. I had learned about the barn from Greg Huber, some years ago, when he had tried to interest the Huguenot Historical Society in moving it to their museum site in New Paltz. They showed no interest.

An effort has recently begun in the Saugerties Historical Society to obtain the building for its 1.5-acre museum site at the 1724 Kierstead stone house in the Village of Saugerties, a few miles away. It would be an ideal solution for preserving this important building, The project would involve not only the work of moving and restoring the barn but an archaeological and historical survey of the site that includes the foundation of a house and a small intact stone building.

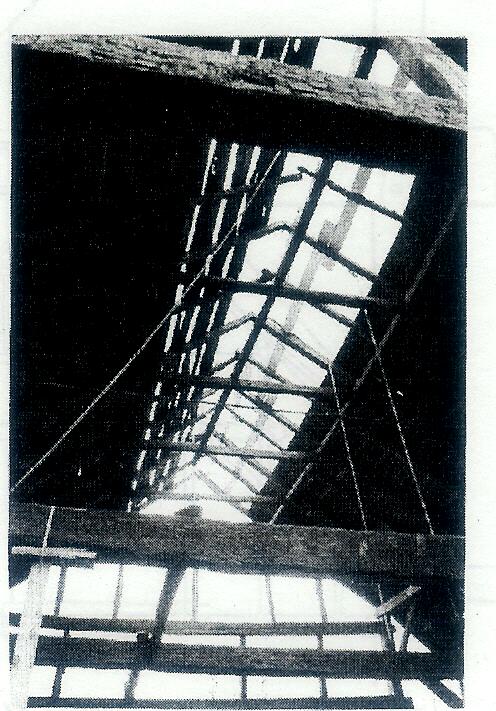

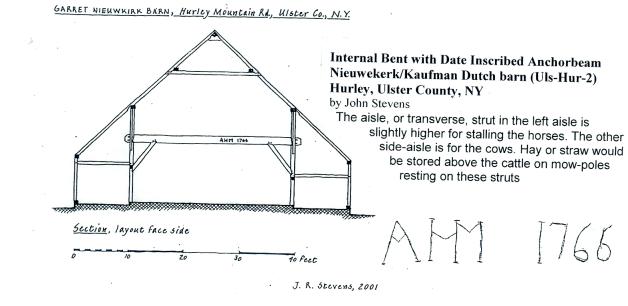

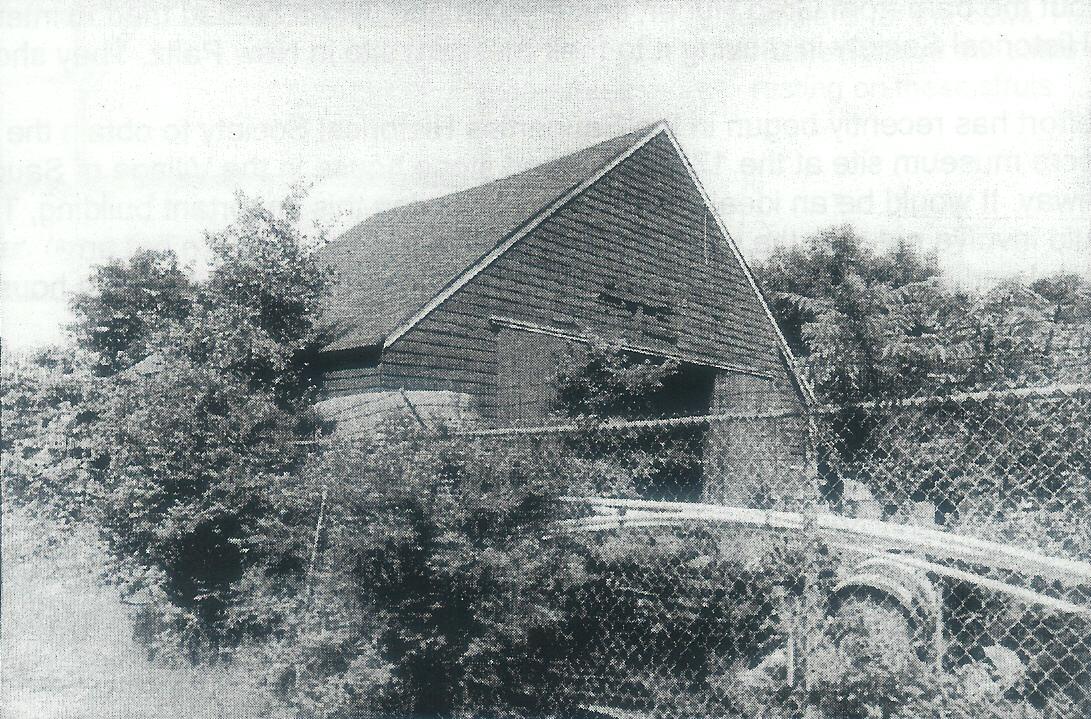

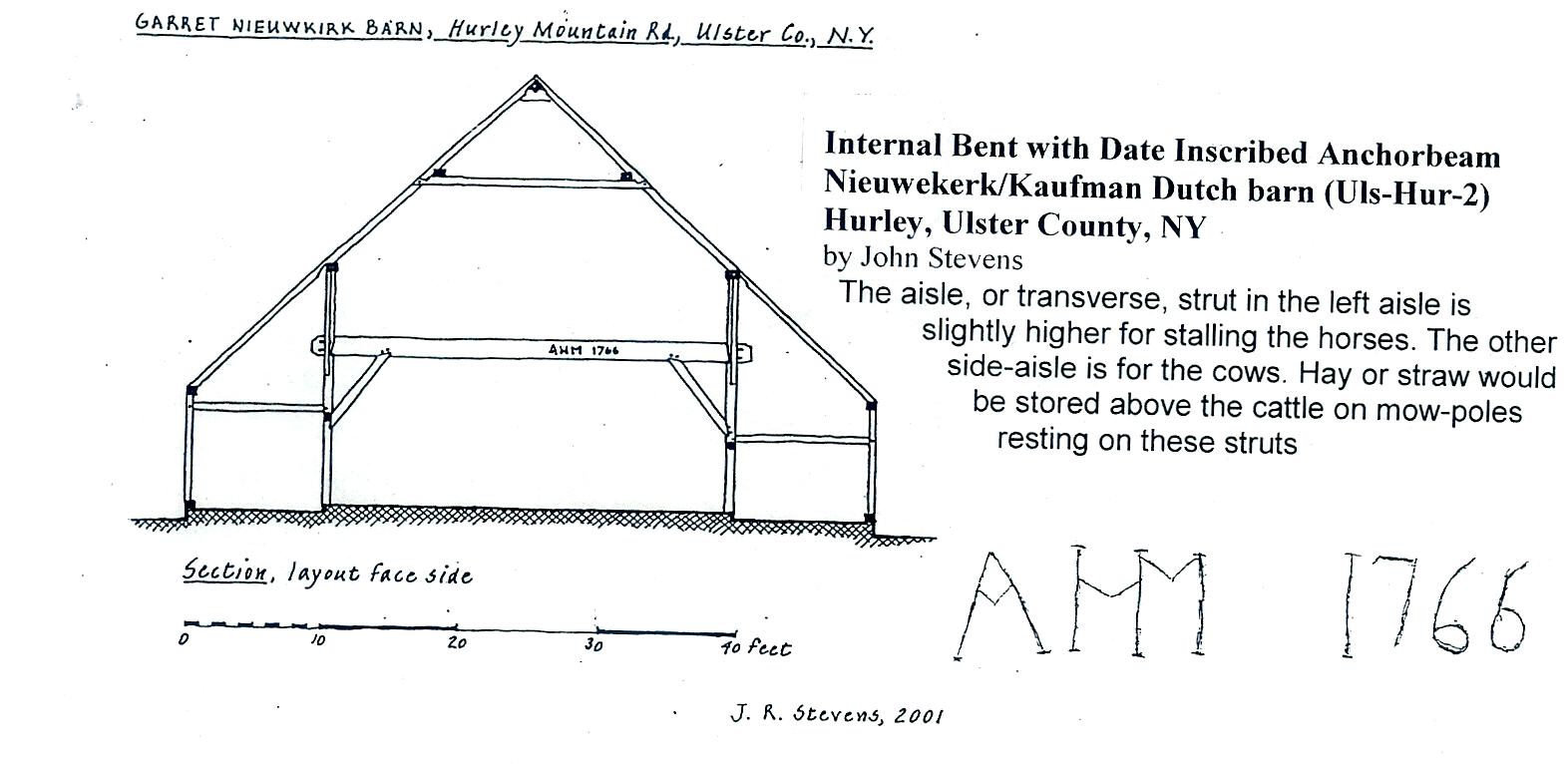

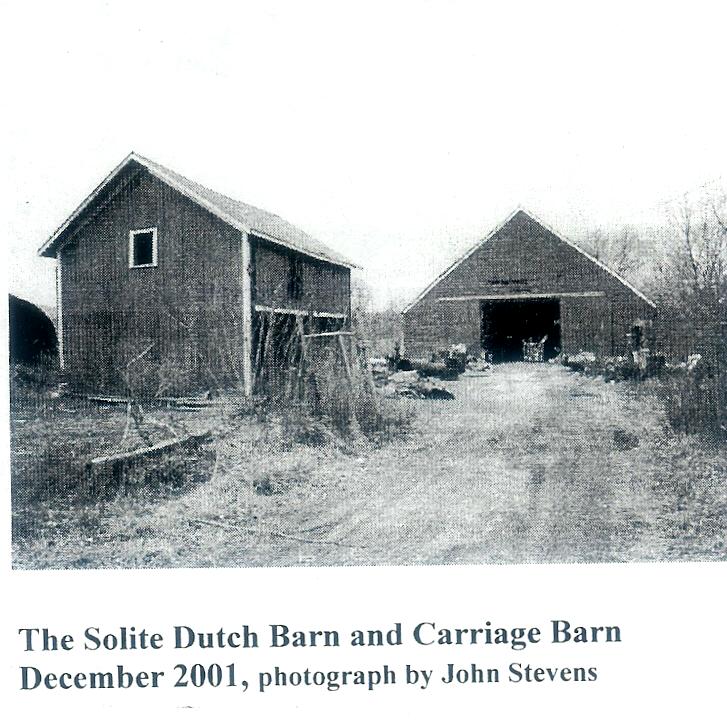

The Solite 3-bay Dutch barn (Uls-Sau-19) is one of about 6 surviving examples known in the Hudson Valley with a major/minor rafter system. This rafter system was first identified in the Nieuwkerk/Kaufman Dutch barn (Uls-Hur-2) in Hurley. Few barns have positive dates of construction but the Nieuwkerk barn is inscribed "1766" on an anchorbeam. In many ways, including the steep pitch of its roof, the low height, 9feet, of its side walls and the spacing and number of minor rafters, the Nieuwkerk barn seems to be the earliest of the examples known and so it is estimated that The Solite Dutch Barn and Carriage Barn the Solite barn was built circa 1770, December 2001, photograph by John Stevens although the Solite barn includes some earlier framing features such as lap-dovetail anchorbeam braces In 1963 John Fitchen visited the Nieuwkerk barn and numbered it "42" in his registration of 76 Dutch barns. He noted the gouge-cut marriage marks on timbers but the barn was full of hay and unfortunately Fitchen did not get to see the rafter system and he remained unaware of this Dutch barn feature. In Greg Huber's second edition (page 189) of Fitchen's book, The New World Dutch Barn, he refers to the Nieuwkerk barn as one of three Dutch barns in Ulster County with major/minor rafter systems extant. There are probably a total of 100 Dutch barns extant in the county. "Seventeen other barns in Ulster County," Huber writes, "have evidence to varying degrees of this pre-war barn type." In other writing Huber refers to the possibility of this rafter system's use in Bergen County, New Jersey.

The rafter system of the Solite barn is not a New World tradition but the survival of a European, and I believe Dutch tradition with Medieval origins. We have very few examples of pre Revolutionary barns. Most of our experience is with the 19th century or late 18th century examples almost all with common rafters but these early major/minor rafter system barns suggest that Hudson Valley architecture of the 17th and early 18th century may have had more Old World features than we are aware of today.

The last barn visited was
The Brink/Mueller 4-bay Dutch U-barn
(Uls-Sau-9). This is a small sized barn with a 20-foot nave (the Solite barn is a medium sized barn with a 25-foot nave). The barn was built soon after 1805, the date Corenelius Brink bought the land. The Brink and Winne families were the first to settle the Saugerties area in the late 17th century. Built as a U-barn with lowered anchorbeams in two bents that formed a wide end bay, it was later converted to a true-form drive-through Dutch barn by cutting through the lowered beams and adding wagon doors on the end wall. The barn has a lowered side aisle used as a horse stall. As in the Solite barn there is evidence of built in stake hay mangers for the horses. The stall in the Brink barn seems low for the manger but the floor is presently dirt. Originally it may have been higher with a plank floor resting on sleepers.

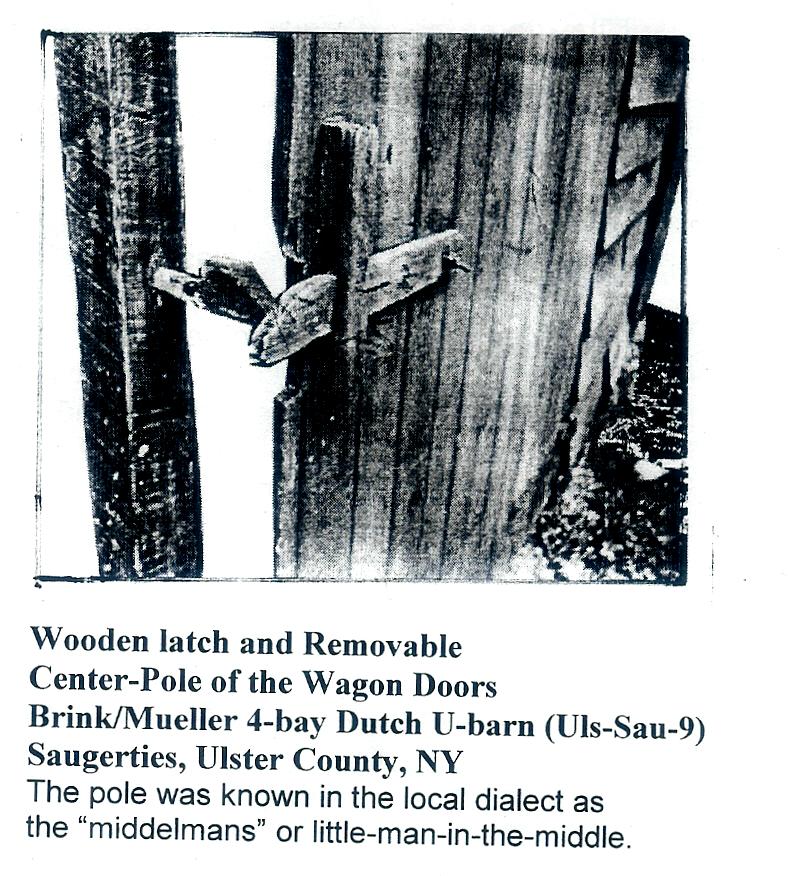

The oak frame of the Solite barn is in generally good condition. A good roof and recent repairs to one wall plate and replacement of several rafters has stabilized and saved the structure. It no longer has a threshing floor and not much of its sills survive. The Brink barn has a wood pegged threshing floor in good condition and many original features, like the latching system for the wagon doors, that could help in the restoration of the Solite barn. In both barns the longitudinal struts on the cow side have been removed.

Saturday, August 25,2001
I spent the day at the Hornbeck/Myers/Grace farm (# 58) Town of Rochester, Ulster County, NY.

Worked with Robert Stevens, son-in-law of the present owner of this third generation Grace family farm, and with a tenant, removing and examining timber from the collapsed frame of this 5-bay Dutch barn with the identical "AHM 1766" inscription as in the Nieuwkerk barn in H. The two barns were probably erected by the same builder in the same year. The Hornbeck barn was altered in the 19th century by raising the side walls and its major/minor rafter system replaced with common rafters. Three of the six 30-foot anchorbeams survive including the inscription beam. Some of the frame has already been removed by Robert Stevens and is in safekeeping in the 30x40-foot circa 1870 side-entrance barn that has an end wall in need of repair. Two longitudinal struts from the left horse-side of the Hornbeck barn survive with notching for a hay manger and struts from the cow side survive with a series of holes drilled vertically to form a stake wall.

The Hornbeck farm was visited by Hellen Wilkinson Reynolds who described the house and its history in her classic 1929 book, Dutch Houses of the Hudson Valley before the Revolution, (see page 207). She noted the inscribed "AHM 1776" date in the barn and speculated that it might also be close to the date of the Dutch stone house on the farmstead.

At the Grace farmstead, we also jacked and placed blocks under the wheels of a box wagon with wooden spooked wheels and two independent sets of wheels that were sinking into the moist mud floor of the cellar of the granary. The wheels seem in good condition. Wagons and barns were made for each other and both are endangered in the Hudson Valley.

I returned to the Hornbeck barn a week later with Bob Hedges to estimate repairs to the side entrance barn and we moved a few more parts. I acquired a 2-foot section of a notched manger strut for a future museum.

Disassembly of The Solite Barn.

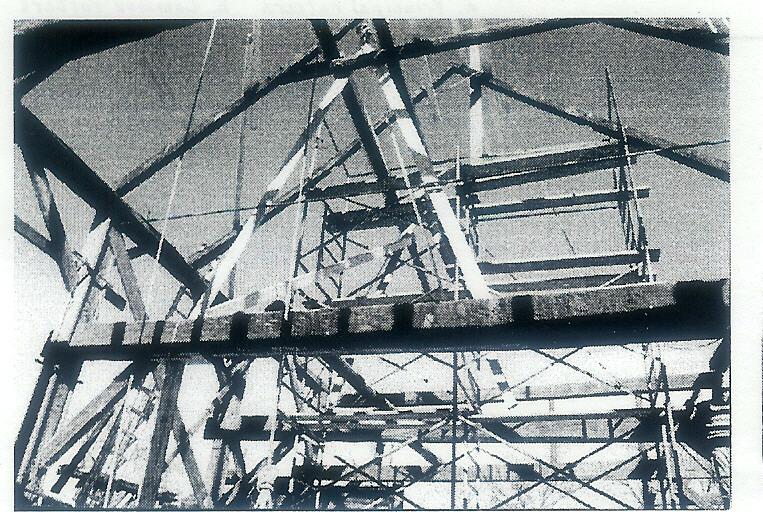

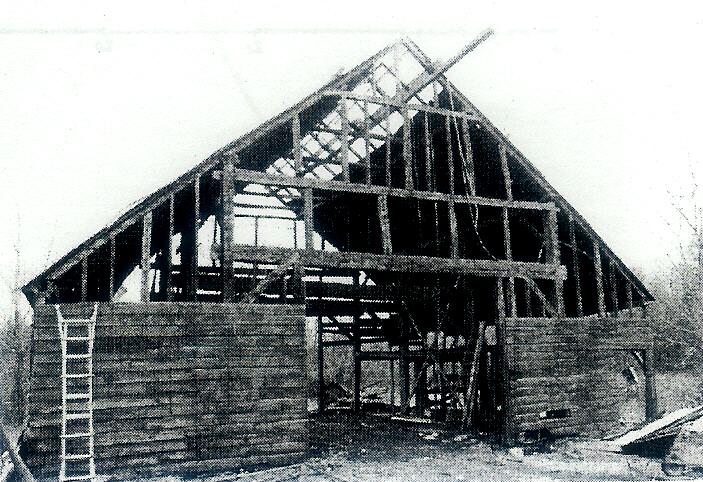

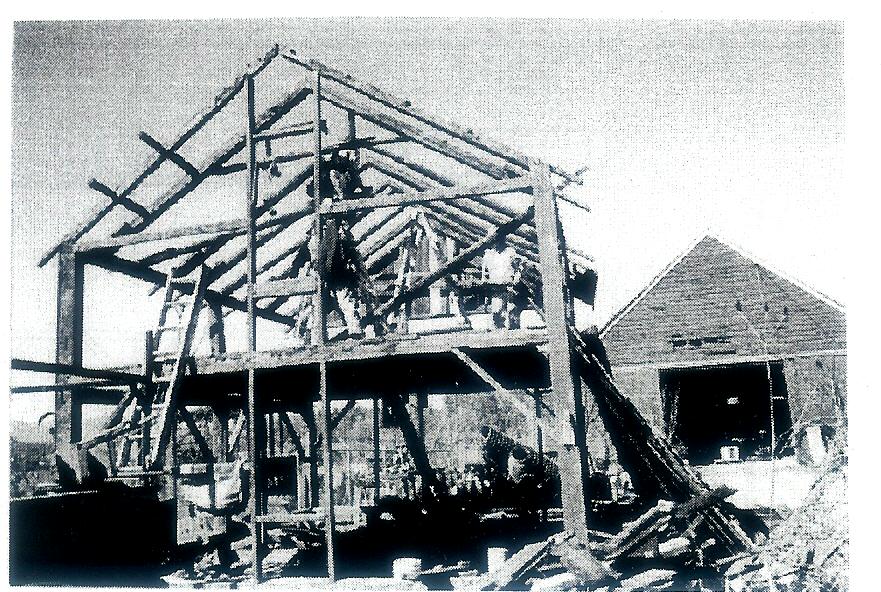

(upper left) Bob Hedges and crew disassemble the Solite carriage barn, April 2002 (upper right and lower right) Jim Kricker and crew remove the ridge pole, December 2003 (lower left) Upper purlins and rafters removed, December 2003

The removal of the light and delicate 45-foot long 4-sided ridge pole and two upper purlins was a unique situation that required good planning and teamwork.
